Product screening is a common practice throughout the manufacturing process. It is often a very dusty process that requires multiple steps of material handling. This process can introduce many operator risks associated with scooping powder and high exposure levels to airborne powder. A properly designed Drum Tipper with a local Ventilation Sleeve dramatically improves the operator experience and reduces airborne dust during this process. This system also reduces cleaning time and cross contamination as it prevents dust from migrating throughout the process suite.
Screening (A)
100-10μg/m³
Containment
500cfm
Point Source Capture
15 seconds
Drum Tipping
150 kg
Capacity

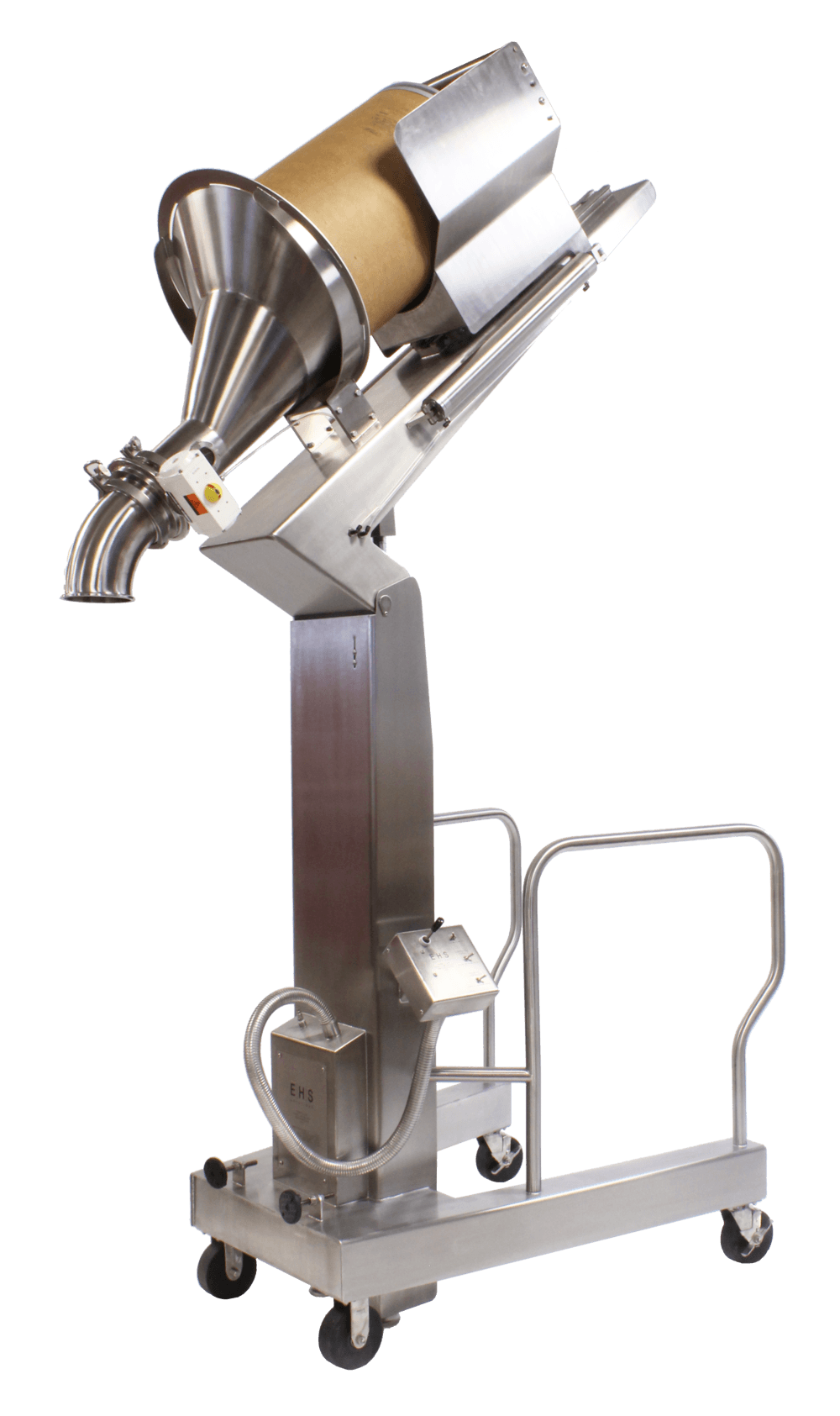

Drum Tipper with Compression Funnel
The Rheo Drum Tipper addresses the ergonomic risk factors associated with manually dumping drums. Each Drum Tipper is designed to meet the specific requirements of the application (drum weight, discharge height, discharge reach, etc.). When a compression cone and valve are required to facilitate a hands free, controlled transfer of free flowing powders, tablets, or capsules; the final tipping angle of the Drum Tipper is increased to 45 degrees. This design is well suited to the filling of elevated hoppers in which a self-regulating flood feed is required.
The compression funnel is available on both the standard and Variable Height Drum Tippers.
Ventilation Sleeve
The Rheo Ventilation Sleeve provides localized dust extraction to capture airborne dust and vapor. The full perimeter slot design provides 360 degrees of extraction to ensure that the required capture velocity is achieved across the entire opening of the Ventilation Sleeve. Each Ventilation Sleeve is engineered to interface with the equipment it serves. The Ventilation Sleeve can be offered as a standalone fixture or mounted on an articulating, height adjustable arm. These arms can be integrated with a portable cart or a wall mounted plate.
Several options are available to ensure the best solution for the application. These options include bag landing tables, bag disposal ports, integrated lids, custom adapter plates, and product grates.
Mobile Ventilation Sleeve
The Rheo Ventilation Sleeve provides localized dust extraction to capture airborne dust and vapor. The full perimeter slot design provides 360 degrees of extraction to ensure that the required capture velocity is achieved across the entire opening of the Ventilation Sleeve. Each Ventilation Sleeve is engineered to interface with the equipment it serves.
The Rheo Mobile Ventilation Sleeve allows the Rheo Ventilation Sleeve to be portable and utilizes a simple linkage design that makes the height adjustable.
The integrated transport cart allows the Ventilation Sleeve to be easily moved from one location to another. A lift-assist mechanism attaches the Ventilation Sleeve to the transport cart, allowing the height of the Ventilation Sleeve to be adjusted.
Air Filtration Unit (Supporting Product)
Rheo offers a complete line of portable and stationary Air Filtration Units that provide a local HEPA filtration device to serve Local Exhaust Ventilation (LEV) systems. The Rheo Air Filtration Unit is designed to meet the utility requirements of multiple Rheo Ventilation Sleeves; it is also a good fit for any application with similar extraction utility requirements.
Each system is configured to comply with international electrical standards. The GMP compliant design features a small footprint and noise rating of 76 dBa. Safe Change filters and activated carbon filters for VOC’s are also available.
Rheo Air Filtration Units are a cost effective alternative to upgrading house exhaust systems that have become over utilized or where there is a need to prevent the contamination of the house exhaust system ducting.
