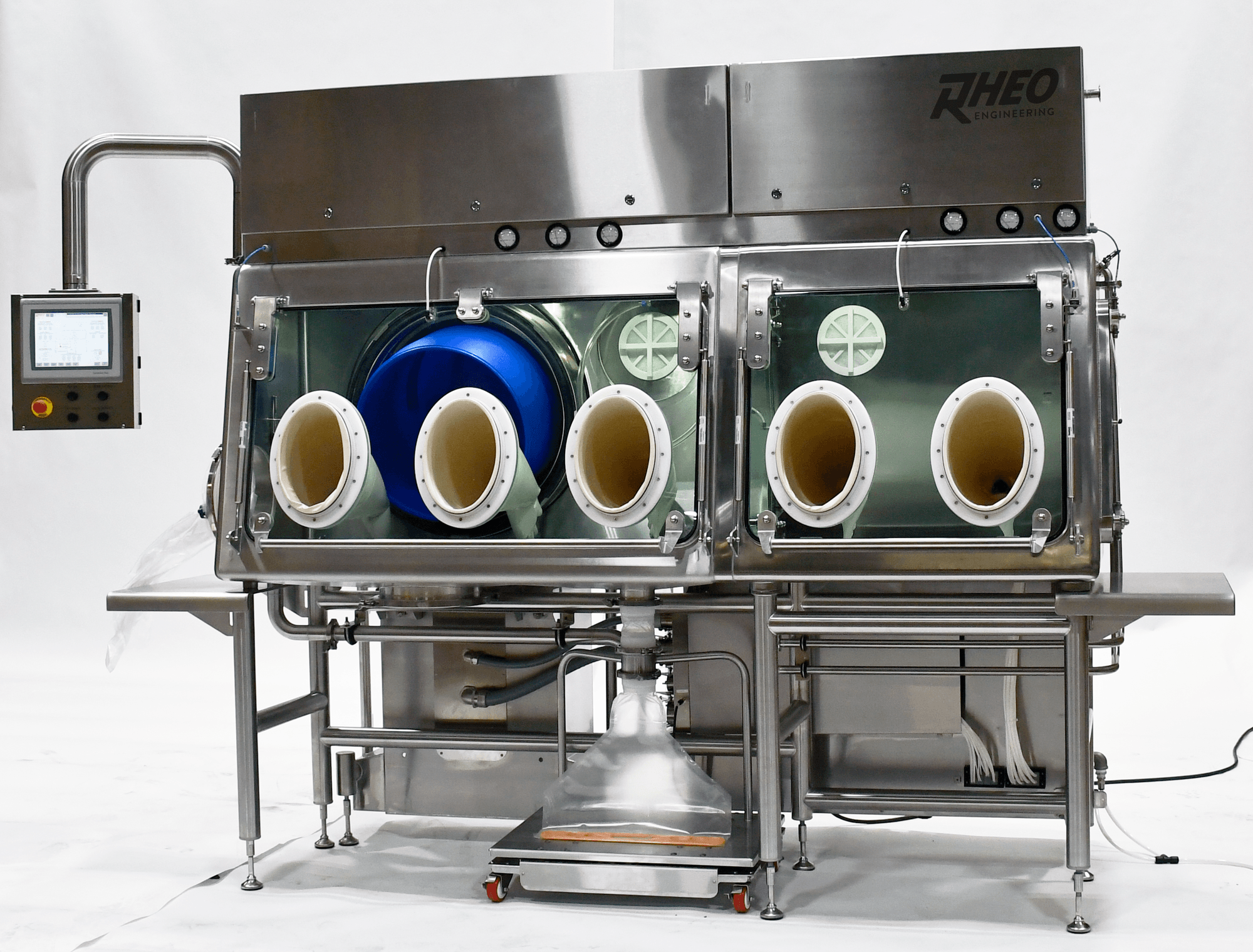

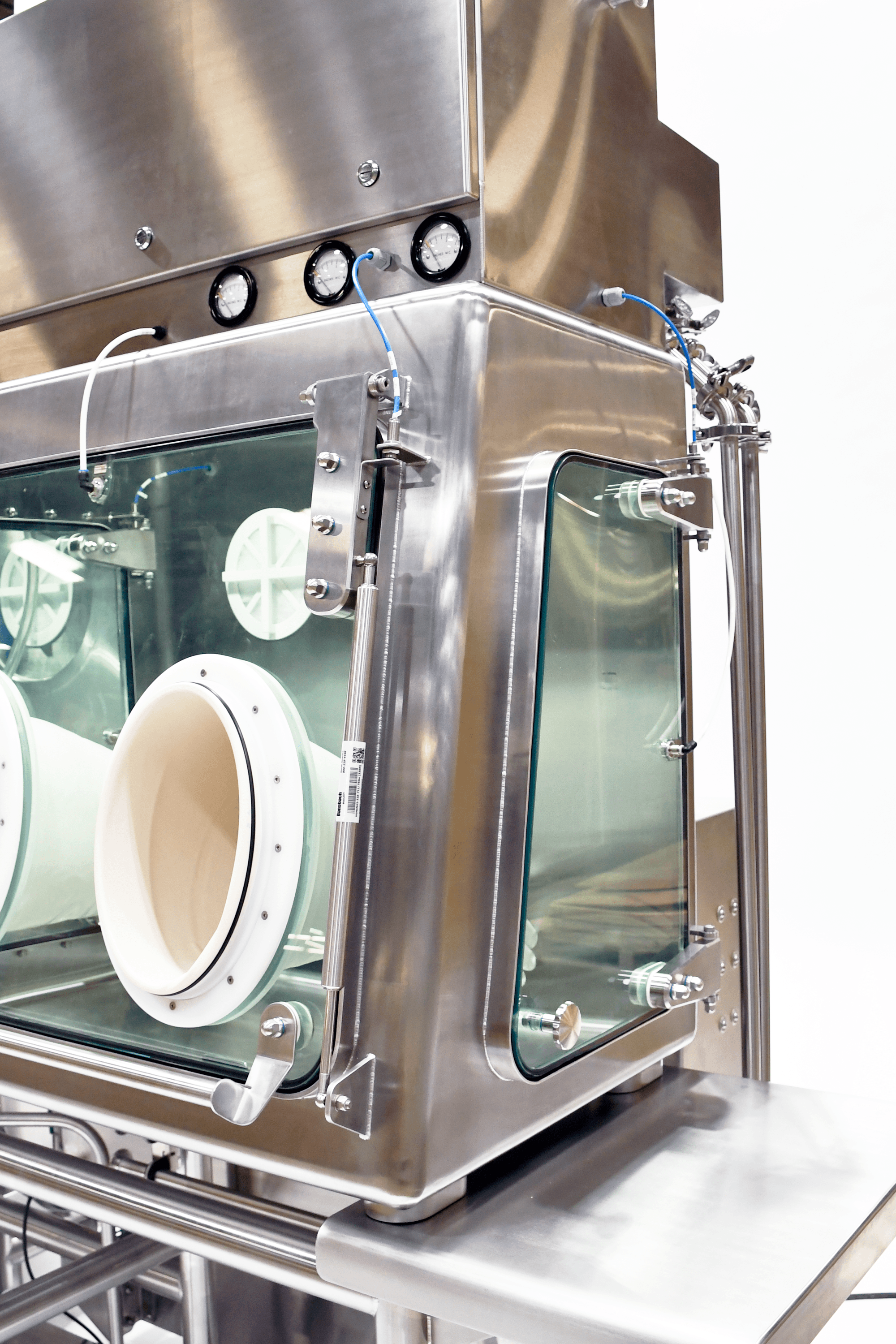

The Containment Isolator is a modular, high-performance system engineered for stringent containment and environmental control in pharmaceutical and chemical processing applications. Each chamber is equipped with independent pressure and gas control systems (PID loops for oxygen and nitrogen), with optional relative humidity (RH%) regulation. Integrated Venturi extraction systems and redundant H14 push-push HEPA filters ensure robust air purification, while rapid breach detection and response mechanisms maintain airflow integrity. The system achieves containment levels of ≤1 μg/m³ with a minimum of 10 air changes per hour (ACH), making it suitable for handling potent compounds.

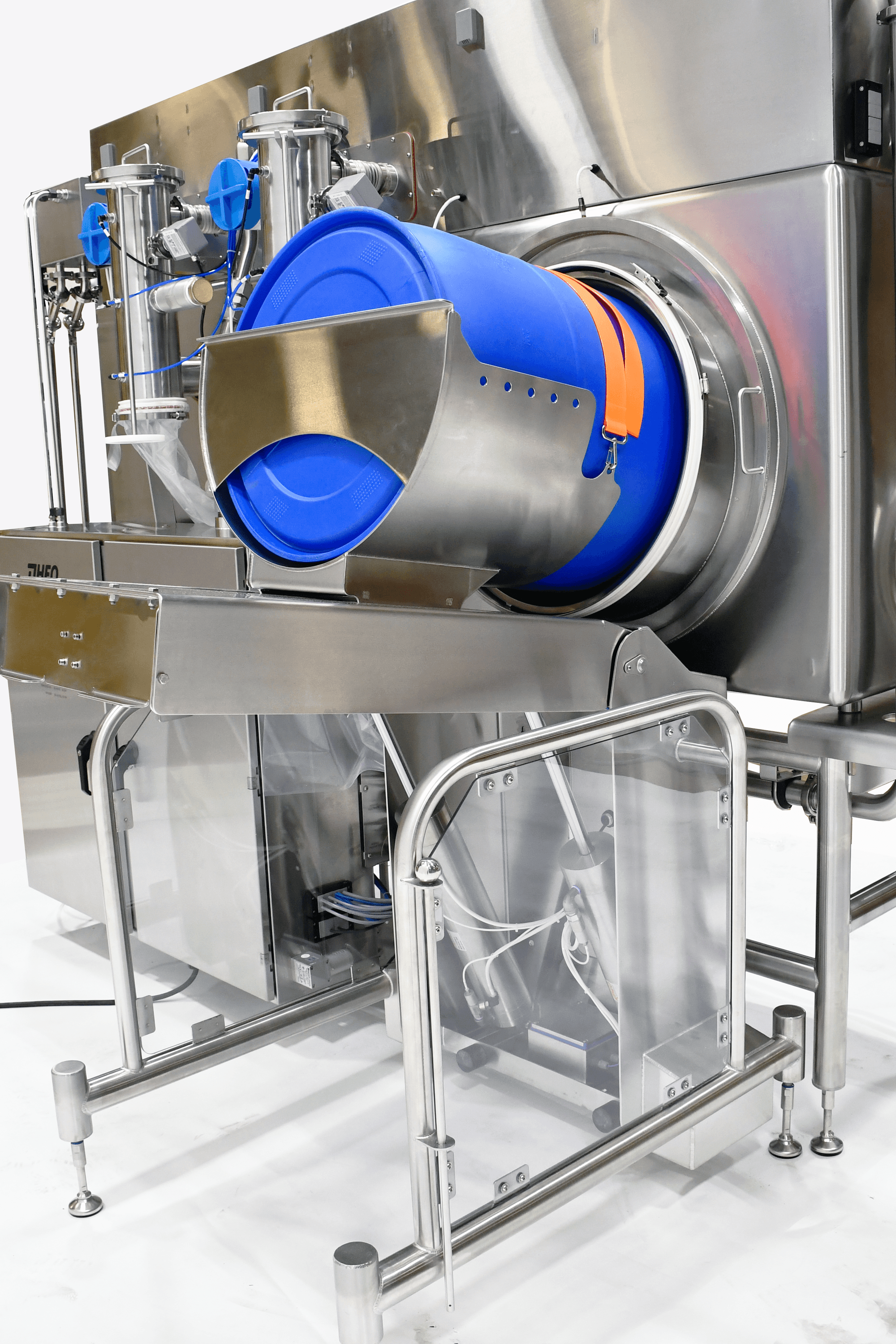

Designed for operational efficiency and safety, the isolator features a Rapid Transfer Drum Port with inflatable seals for secure module and drum connections, enabling fast and high-containment material transfers. Cleanability is enhanced through 1-inch corner radius chambers, a full clean-in-place (CIP) system with spray balls and operator wands, and flush surfaces enabled by integrated inflatable seals. The isolator features automated environmental control with real-time monitoring of pressures, airflow, oxygen concentration, and filters, and complies with 21 CFR Part 11 for electronic records and batch reporting. Customizable chamber configurations and transfer modules (e.g., weigh & dispense, vacuum hopper, chute) allow adaptation to specific workflow requirements, including hazardous location executions (e.g., Class I, Division 2).
