The Drum Tipper has several benefits when implemented in the manufacturing process:
|
|

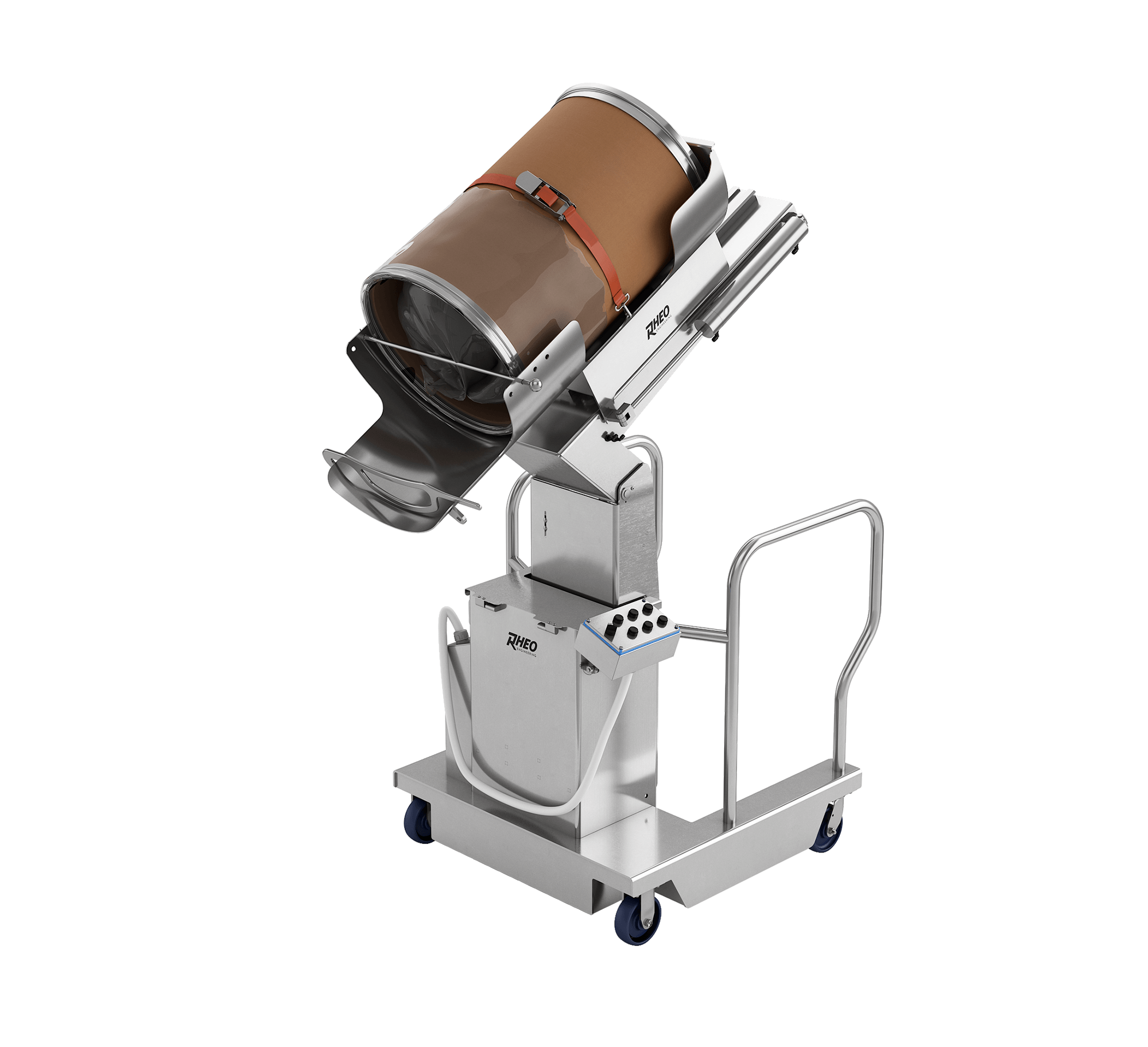

Drum Tipper:
Variable Height with Powered Drum Slide Cradle
Choose a configuration below.
Discharge Height
Discharge Reach
DT730
[Part #2026137]- Variable Height
- Discharge Height: 41.5-60″
- Max Load Capacity: 150kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Unidirectional Finish with Stainless Steel Cylinders
DT730
[Part #2029009]- Variable Height
- Discharge Height: 44-72″
- Max Load Capacity: 150kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Unidirectional Finish with Stainless Steel Cylinders
DT730
[Part #2029207]- Variable Height
- Discharge Height: 59.5-84″
- Max Load Capacity: 150kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Unidirectional Finish with Stainless Steel Cylinders
DT730
[Part #2029994]- Variable Height
- Discharge Height: 59.5-84″
- Max Load Capacity: 250kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Unidirectional Finish with Stainless Steel Cylinders
DT730
[Part #2032177]- Variable Height
- Discharge Height: 41.5-60″
- Max Load Capacity: 150kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Random Orbital Finish with Aluminum Cylinders
DT730
[Part #2032179]- Variable Height
- Discharge Height: 44-72″
- Max Load Capacity: 150kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Random Orbital Finish with Aluminum Cylinders
DT730
[Part #2032181]- Variable Height
- Discharge Height: 59.5-84″
- Max Load Capacity: 150kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Random Orbital Finish with Aluminum Cylinders
DT730
[Part #2032183]- Variable Height
- Discharge Height: 59.5-84″
- Max Load Capacity: 250kg
- Mobile Free Standing Cart
- Powered Drum Slide Cradle
- Random Orbital Finish with Aluminum Cylinders
Features

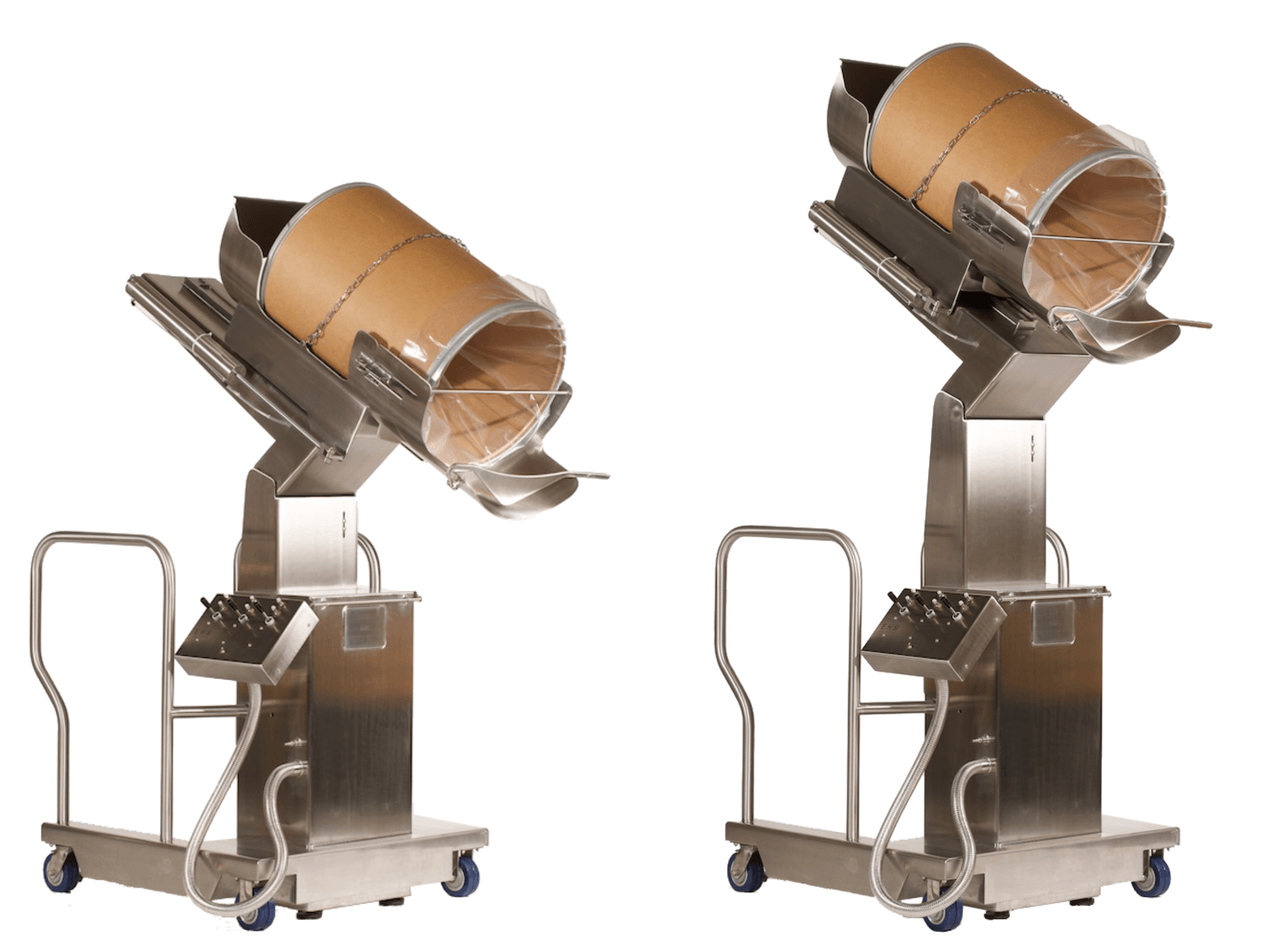

Variable Height Option
The Rheo Variable Height Drum Tipper takes the benefits of the standard Drum Tipper to a new level; a dual-stage design allows drums to be lifted and tipped at much higher heights than is possible with a standard Drum Tipper. Also, the variable height technology allows operators to serve a variety of discharge heights with a single machine; including applications with adjustable-height ergonomic features, such as enclosures.
Operator Centric Design
By designing around an analysis of operator movements during the drum charging process, an unmatched level of safety, operating simplicity, and functionality is achieved. A drum can be raised, lowered, and tipped into the proper position by using a single hand or foot control. This approach to drum handling allows the operator to easily control the product flow during the entire charging process.
Cleanability
All exposed surfaces on the Drum Tipper can be fully washed-down for cleaning. Most exposed surfaces are stainless steel, with the exception of some small plumbing components.
Surface Finish
Rheo offers several different surface finish options to fit your application needs.
Visit our GMP Compliance page to learn more.
Common Applications
- Vessel Charging
- Drum to Drum Dispensing
- Reaching Elevated Charging Pots
- Mill Charging
- Tablet Press Hopper Feeding
- V-Blender Charging
- Tablet Coater Charging
- IBC Charging
- Packaging Line Hopper Filling
