MTS - Rigid Containment with Single Use Bag

Drum to Bag/Bottle Transfer with Rigid Isolator

The Rheo Material Transfer Station is a small footprint workstation that improves operator safety and efficiency during the material transfer and weighing process. The operator workstation with the integrated drum tipper provides a compact, GMP, ergonomic means of transferring material.

The Material Transfer Station with Rigid Glovebox Containment is designed for highly contained, closed transfers for highly toxic products and APIs. Containment levels of 1-0.01 µg/m3 can be achieved via the rigid glovebox.

Rheo has conducted performance verification tests on the Material Transfer Station. The tests showed excellent results for each of the different configurations tested. Copies of the executive summary, full reports, and supplemental documentation are available upon request.

The Drum to Bag/Bottle configuration is used to transfer materials from drums into bags or bottles in order to repackage the material into a more GMP or usable container or to pre-weigh a material kit using the integrated scale. The newly packaged bags/bottles can then be transported to a manufacturing space for batch processing.


The Material Transfer Station with Rigid Glovebox Containment has several benefits when implemented in the manufacturing process:

  • Ergonomic Product Transfer
  • Minimal Consumable Costs
  • Cleanability (WIP Sprayball)
  • Controlled Atmosphere
  • Easy Drum Docking (Inflatable Seals)
  • Portable Dispensing Suite
  • Containment (1-0.01 µg/m3)
  • Small Footprint
MTS - Rigid Containment with Single Use Bag


designed to help ergonomically position the Material Transfer Station.

Drum Tipper:

integrated Drum Tipper with Powered Drum Slide for easy dispensing.

Load Cells for Weighing:

integrated weighing with washdown load cells for cleanability.


non-marking rigid or swivel casters for GMP compliance.

Operator Controls:

wash down control pendant on articulating arm with momentary push button controls and optional weighing readout.

Drum to Bag/Bottle Transfer Module

Front Panel:

safety glass on gas-spring lift assist, sealed via perimeter inflatable seal.

Rigid Glovebox:

environment can be controlled to the desired specifications, achieves containment levels to 1-0.01 µg/m3.


WIP/CIP system for inside the glovebox.

Glovebox Lights:

LED lighting for improved visibility in the glovebox.

Adjustable Height Shelf:

can be used to hold shorter drums or bags.

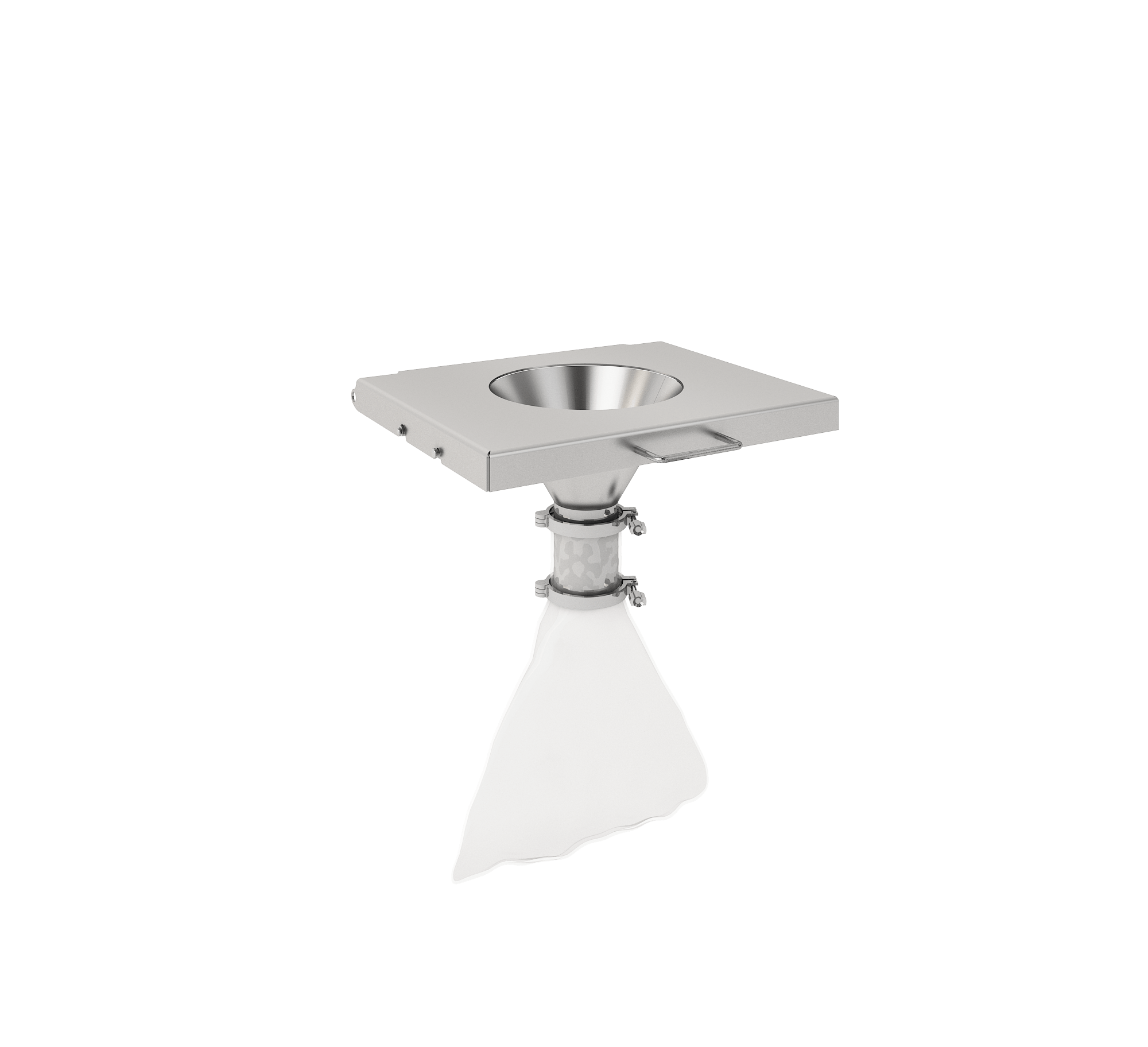

Drum to Bag/Bottle Transfer Module for the Rheo Material Transfer Station

Closed Transfer Systems

The Drum to Bag/Bottle Transfer Module is designed to hold the receiving container so product can easily be transferred. For Rigid Closed Transfer Containment, the top of the transfer module will be connected to the glovebox using an inflatable seal, or a short transfer chute, and a split valve can be attached to the bottom.

Using a split valve to provide containment is designed to keep operator particle exposure to 1-0.01 µg/m3. Various split valve technologies can be attached to the transfer module, such as:

  • ChargePoint®
  • Ezi-Dock™
  • Buck®

Controlled Environment

The rigid glovebox can be controlled by a programmable logic controller to monitor and maintain a safe operating environment within the glovebox. The operating conditions are customized to a specific application and automatically change based on what mode the glovebox is in. A touch-screen HMI is used to control the operating mode and to display the system conditions or give user prompts. Glovebox pressure and oxygen concentrations are the two primary operating conditions that are controlled.

Common application option for Rheo Material Transfer Station

Common Applications

  • Weigh and Dispense
  • Repackaging
  • Sampling
  • Charge Pot Filling

Integrated Weighing

The integrated weighing system provides a compact solution for the weighing and dispensing operation. The weighing module that holds the receiving container is isolated from the workstation to provide excellent weighing accuracy.

The typical integrated weighing system includes the following features:

  •     150 kg Weighing Capacity
  •     Mettler Toledo IND570 or IND560X Readout
  •     4x Mettler Toledo Load Cells
  •     Weigh Accuracy to +/- 50 grams (higher accuracy, low capacity options are available)
  •     Can be Integrated with Computer, PLC, or Printer

Integrated drum tipper from Rheo

Drum Tipper

vThe integrated pneumatic Drum Tipper can be used to lift a wide variety of incoming containers and slide it towards the operator for easy dispensing into the receiving container. Pneumatic controls provide safe, controlled operation of the Material Transfer Station.

  • 150 kg Drum Capacity
  • Pneumatic Drive System (90 psig, 8 scfm Clean, Compressed Air)
  • Material of Construction: 304 Stainless Steel Frame Structure, 316 Stainless Steel Drum Cradle and Product Contact Surfaces


All exposed surfaces on the Material Transfer Station can be fully washed-down for cleaning. Some configurations of the Material Transfer Station include WIP spray-ball systems to wash the product contact surfaces.

Operator Centric Design

By designing around an analysis of operator movements during the drum charging process, an unmatched level of safety, operating simplicity, and functionality is achieved. A drum can be raised, lowered, and tipped into the proper position by using a single hand or foot control. This approach to drum handling allows the operator to easily control the product flow during the entire charging process.

Testing Center

Powder handling can be a challenging process and there are many factors that lead to the optimal solution. We can handle the risk for you! Our Testing Center is equipped to test your materials, allowing us to design the best solution for your specific needs. We don’t just sell a product – we sell a solution.

We can utilize the Testing Center for process testing, powder flow testing, transfer rate testing, concentration testing, and containment performance verification.

Reach out to your Regional Sales Manager to discuss the testing of your next bulk powder handling project.
